Space Qualified Isolators and Circulators
All models below are qualified for space flight applications. They can be ordered directly from our website.
Custom bandwidths, screening, acceptance, and qualification test profiles are available upon request.
Contact DiTom and we’ll be happy to customize a product for your specifications.

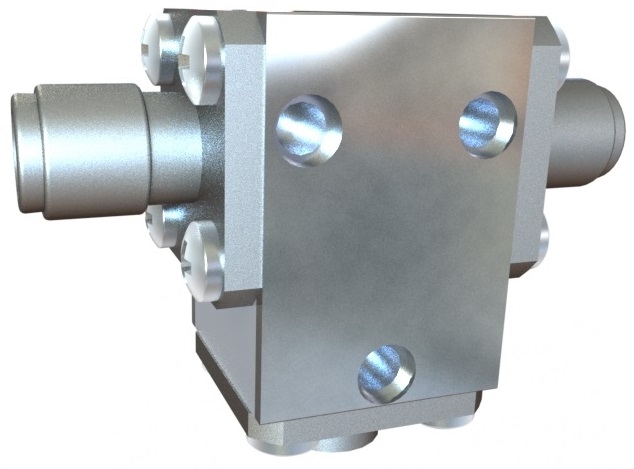

Space Qualified Isolators
- All DSIxxxx part numbers below

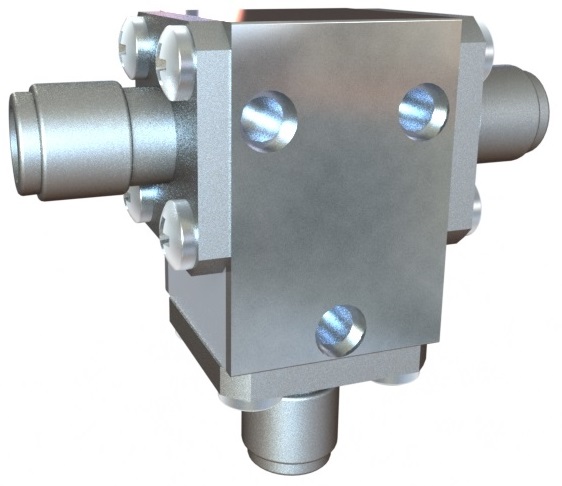

Space Qualified Circulators
- All DSCxxxx part numbers below
| Frequency (GHz) | Model Number | Isolation (dB) | Insertion Loss (dB) | VSWR | 1-24 | 25-99 | 100+ | Availability |
|---|---|---|---|---|---|---|---|---|
| 10.70 - 14.80 | DSI1014 | 20 | 0.3 | 1.20:1 | $2,395.00 | $2,280.00 | $2,170.00 | 2-3 Weeks |
| 10.70 - 14.80 | DSC1014 | 20 | 0.3 | 1.20:1 | $2,395.00 | $2,280.00 | $2,170.00 | 2-3 Weeks |
| 17.30 - 22.00 | DSI1722 | 20 | 0.5 | 1.25:1 | $2,595.00 | $2,470.00 | $2,350.00 | 2-3 Weeks |
| 17.30 - 22.00 | DSC1722 | 20 | 0.5 | 1.25:1 | $2,595.00 | $2,470.00 | $2,350.00 | 2-3 Weeks |
| 27.00 - 31.00 | DSI2731 | 20 | 0.6 | 1.25:1 | $2,795.00 | $2,660.00 | $2,530.00 | 2-3 Weeks |
| 27.00 - 31.00 | DSC2731 | 20 | 0.6 | 1.25:1 | $2,795.00 | $2,660.00 | $2,530.00 | 2-3 Weeks |
